Japan’s lunar rover was designed by Transformers toymaker Takara Tomy

When Japan’s Good Lander for Investigating Moon, or SLIM, touched down on the moon late final month, the mission was deemed a significant success by the Japan Aerospace Exploration Company (JAXA). SLIM had managed to realize its main aim by touchdown inside 100 meters of its goal, a strikingly correct pinpoint after a 230,000-mile voyage. It was like tossing a dart off a skyscraper and hitting a dartboard on the road.

However whereas SLIM hit the goal, it didn’t fairly nail the touchdown. Photos transmitted back to Earth confirmed the lander awkwardly tumbled over, upside down. These photographs got here courtesy of one other (and arguably extra profitable) a part of the lunar mission: a tiny, camera-equipped rover referred to as SORA-Q. In regards to the dimension of a baseball, SORA-Q is a spherical aluminum alloy robotic that dropped out of the lander earlier than making contact with the floor, autonomously rolled just a few dozen toes away, after which pointed its embedded digicam lens again on the touchdown web site.

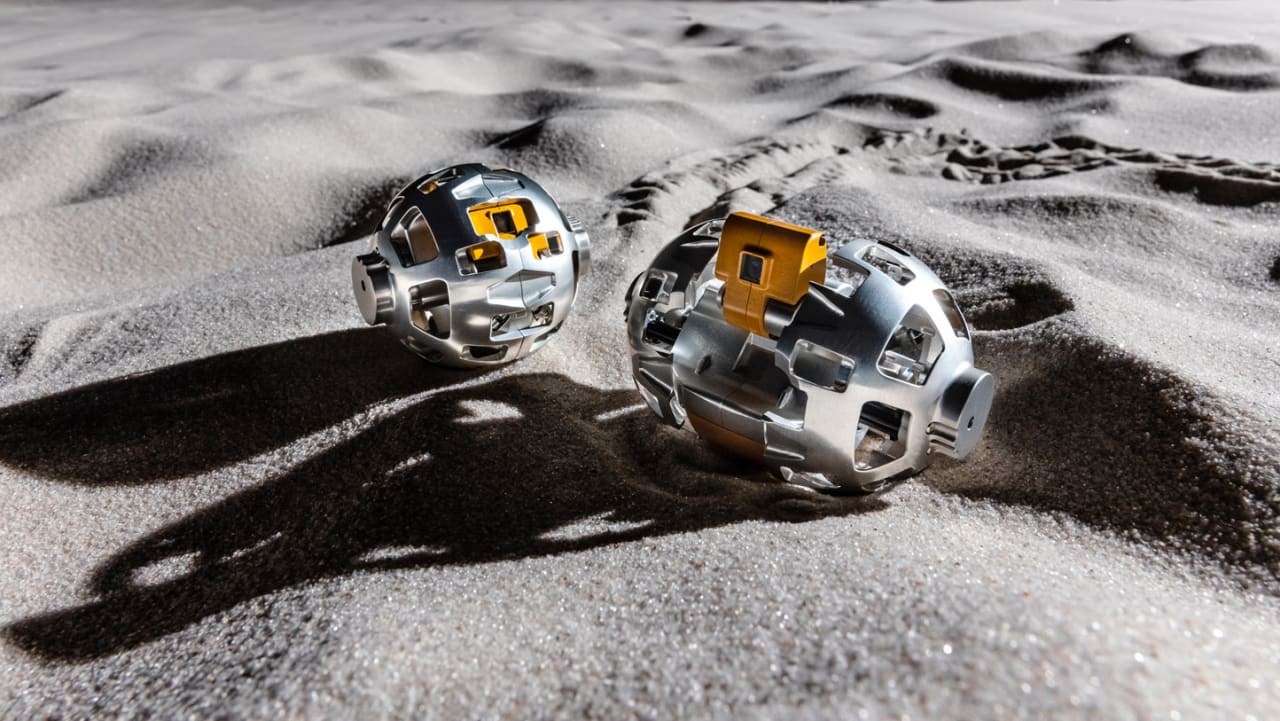

Made to deal with the tough and dusty floor of the moon, SORA-Q was designed to separate open at its heart and broaden outward, creating two hemispherical wheels for rolling or climbing throughout the lunar panorama and opening house within the center for its digicam to flip up and document footage. This shape-shifting design is sort of a space-exploring model of a Transformer toy. And that’s not a coincidence. SORA-Q was designed by Takara Tomy, the toy firm that makes Transformers.

Takara Tomy and JAXA have been working collectively on this challenge since 2016, when the house company seemed to exterior organizations for assist in creating roving robots for its missions.

“Within the preliminary phases, proposals for robots mimicking numerous types of bugs, akin to cube-shaped and centipede-like robots, have been made,” explains Takara Tomy’s Yousuke Yoneda, the developer of SORA-Q, in an electronic mail. “By exchanges with JAXA, the idea of a spherical robotic emerged and was additional explored. Nevertheless, there was a problem of instability and fast stoppage throughout locomotion within the spherical state.”

So Takara Tomy seemed to one in every of its most profitable franchises, Transformers, which is predicated on autos that fold open and alter form to turn into closely armed robots. Utilizing the same precept, the corporate realized, the rover might be designed in a single compact type for its journey to the moon, after which remodel into one other form extra conducive to locomotion as soon as on the floor.

Checks confirmed a prototype was in a position to transfer freely on flat, sandy surfaces just like what JAXA anticipated the rover to seek out on the moon. However the rover encountered issues on inclines. Once more trying to earlier expertise tackling motion in toys, Yoneda noticed an answer to the rover’s drawback in one other Takara Tomy franchise, referred to as Zoids, which options robots that look and transfer like animals.

The design of the Zoids toys was impressed by motion seen in nature, like that of child sea turtles climbing up sandy slopes, and the toys got what the corporate calls an “eccentric axis” within the wheels, giving them the flexibility to roll in a form of wobbly, bobbing movement.

“By shifting the middle of the wheels and shifting them like residing creatures, the problem was efficiently resolved,” Yoneda says. The rover prototype was tweaked and efficiently scaled each flat and inclined surfaces.

The group—which finally grew to incorporate Takara Tomy, JAXA, Sony Group Corp., and Doshisha College—pulled from experience throughout the sciences, however ended up relying closely on the toy maker’s expertise. Even on its insides, the rover options toy tech. The drivetrain system that controls the tiny robotic was impressed by a 6.5-inch strolling humanoid robotic referred to as i-Sobot, initially launched in 2007 and able to strolling, dancing, and talking 200 phrases and phrases. In some methods the SORA-Q lunar rover is much less superior than the robotic it’s partly primarily based upon.

To its credit score, SORA-Q did efficiently obtain its mission, autonomously touring throughout the floor of the moon, flipping up its Transformer-like digicam, and snapping the photographic proof of the just about excellent execution of Japan’s lunar touchdown. With solely about two hours of battery life, SORA-Q’s function within the mission was short-lived.

However the design lives on. Betting on this success, and never lacking the apparent crossover enterprise alternative inherent in a toy-like lunar lander, Takara Tomy launched a toy version of SORA-Q in September with a urged retail value of about $180. The corporate says it at present has no plans to launch the toy exterior of Japan.
